360° shielded
100% backwards compatible (Flanges)
Degree of protection: IP65, IP67, and IP69K
RoHS compliant

CONEC circular connectors with bayonet quick locking system

... secure connections completely without tools!

Circular connectors

with bayonet quick locking system

Circular connectors

with bayonet quick locking system

Want a quick connect?

No time to read a manual?


Compared to the classic screw-connector, regardless of the manufacturer, the technician does not need a torque wrench for the CONEC M12 series with bayonet quick-locking. No visual contact is necessary to ensure a secure lock. A quarter turn by hand is enough to establish complete contact. The technician receives tactile and acoustic feedback that the job is done.

Error-free and secure connections.

Locking by hand is not only simple and fast, but also safe. The locking mechanism ensures that the contact is always correct. The three-point bayonet lock meets the protection level IP65, IP67 and IP69K. In addition, our new series is shock and vibration-proof according to railway requirement IEC 61373:2010 Class 1B.

Revolutionarily simple, cost-effective and safe.

CONEC M12 with bayonet lock.


Weltkarte_mitYoutube_rot

Safe assembly in no time at all: M12 bayonet quick-locking mechanism

The coupling flange variants with direct PCB connection are also equipped with an internal thread in the plug-in area, thus ensuring 100% backwards compatibility with standard M12 connectors.

This means that new systems can be equipped with the M12 bayonet without any concerns.

As standard, the M12 bayonet series is presented in the codes A and D. The print flanges are available in axial and angled forms for rear wall mounting and a panel thickness of 2.2 mm.

What are the advantages of connectors with bayonet lock?

Regardless of what connectors you currently use, there are a number of fundamental problems due to the need to mount them with tools and maintain a certain torque:

  1. Connectors are used in hard-to-reach places, such as lighting and camera control on tractors. The technician often does not have visual contact and must work blind.
  2. Connectors from different manufacturers require different torques. Technicians often do not have an overview or lack the appropriate guidelines, which can lead to errors.

With the M12 series connectors with bayonet quick-locking, these problems are a thing of the past. Additionally, you save costs as the work can be done more easily and quickly.

The 3 most important reasons:

  • Reduction of work errors
  • Secure connections
  • Efficient and comfortable work

Benefits at a Glance


Advantages:

  • Tool-less, secure, fast, and tactile three-point bayonet lock
  • The bayonet lock allows for complete contact without the use of a torque wrench, thus avoiding errors in the production process
  • Flange connectors are 100% backwards compatible with the standard M12x1
  • 360° shielded
  • Protection class IP65, IP67, and IP69K
  • Shock and vibration-proof according to railway requirement IEC 61373:2010-10, Class 1B
  • RoHS compliant
  • Various standardized installation heights

Fields of application:

  • Automation technology
  • Drive technology
  • Enclosures and device connections
  • Mechanical engineering
  • Industrial interfaces
  • Communication technology
  • Security and monitoring systems
  • Agricultural and construction machinery
  • Transportation industry

Versatile use - excerpt from our product portfolio

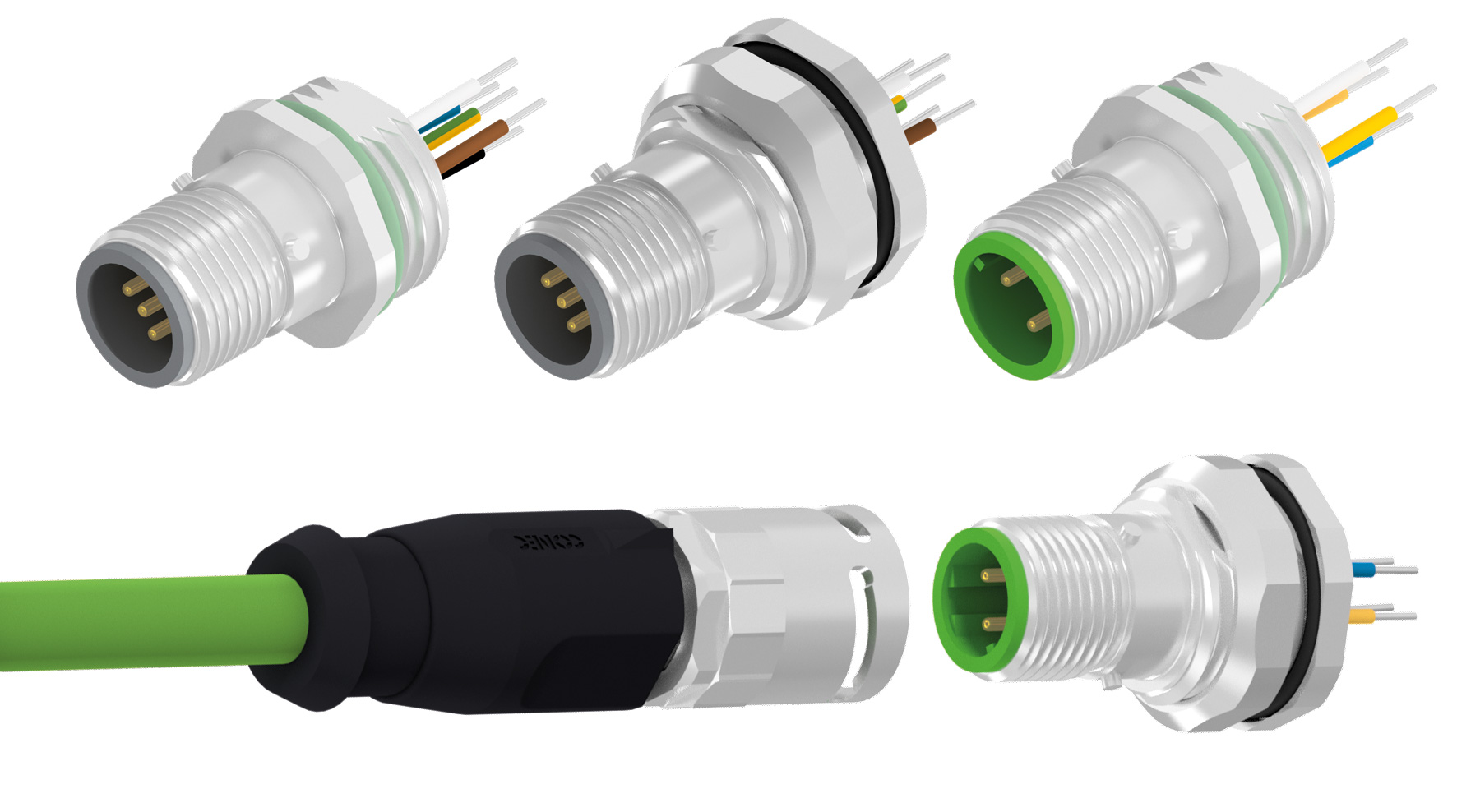

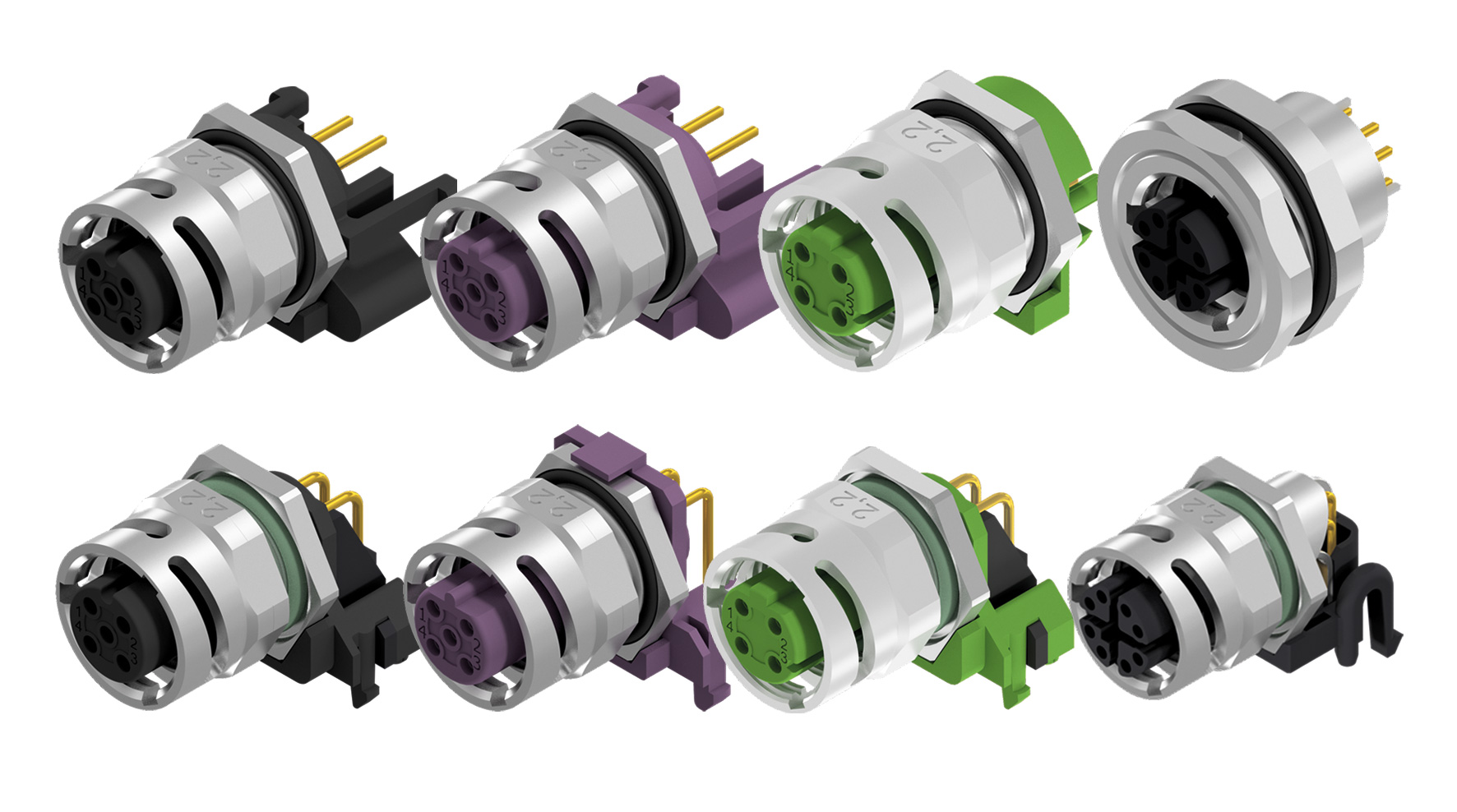

For device-side connection, A- and D-coded print coupling flanges are available axially and angled as well
as D-coded installation flanges with wires – also available as connection cables with RJ45.

CONEC_ID60215_43K1A4662-scr

Socket dip solder termination, A-coding

Socket, female connector axial, A-coded, print termination, solder pin straight, rear panel mounting

For use in your application you need a different type of termination?

Socket, dip solder termination, A-coding, angled

Socket, female connector axial, A-coded, print termination, solder pin angled, rear panel mounting

You need a STP-file?

CONEC_ID59223_R1_43K1A4661-scr
CONEC_ID60314_43K1A4660-scr

Socket, dip solder termination, D-coding

Industrial Ethernet socket, female connector, D-coded, print termination, solder pin straight, rear panel mounting

You need a data transfer rate of up to 10 Gbit/s?

Socket, dip solder termination, D-coding, angled

Industrial Ethernet socket, female connector, D-coded, print termination, solder pin angled, rear panel mounting

You need more technical data?

CONEC_ID60452_43K1A4659-scr

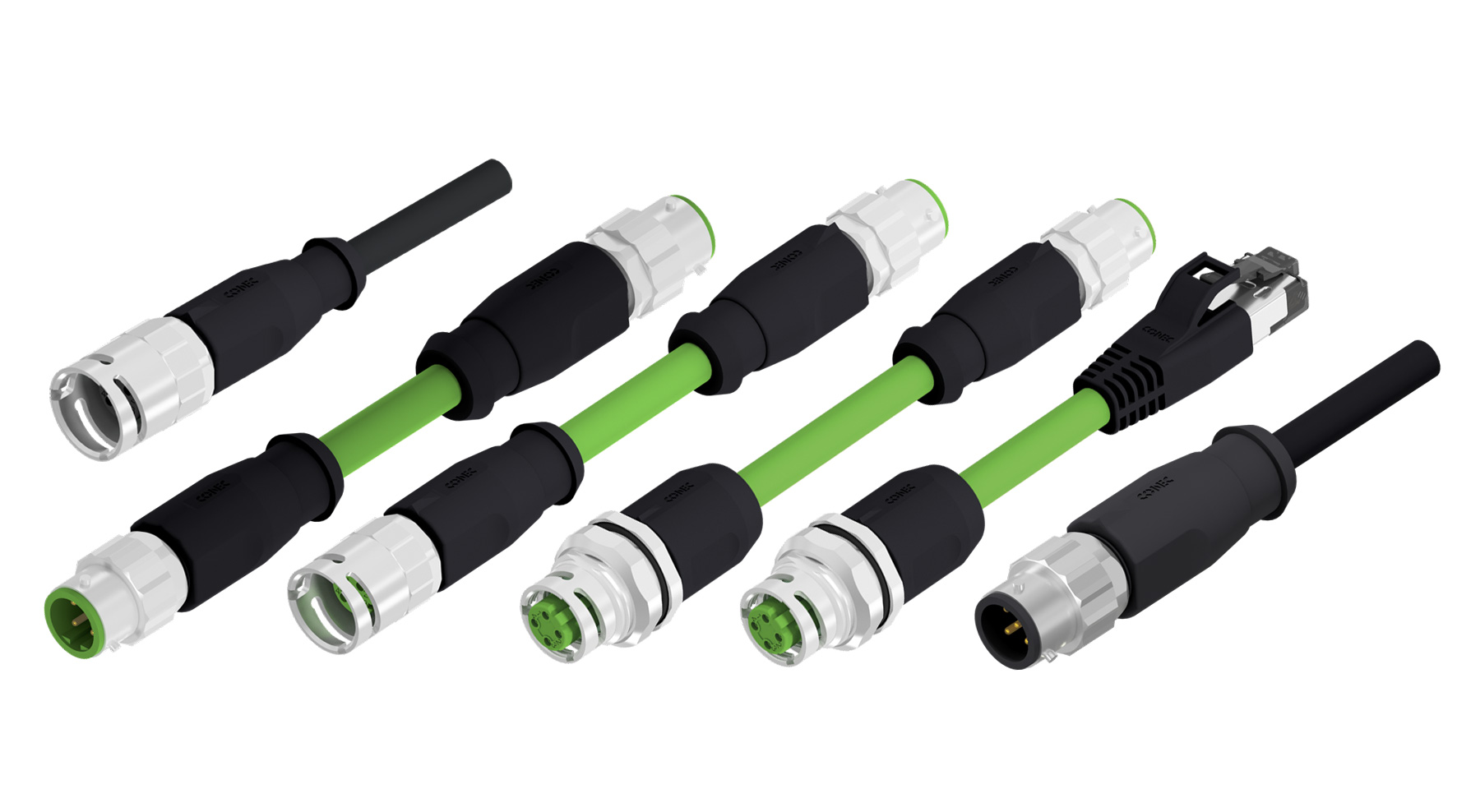

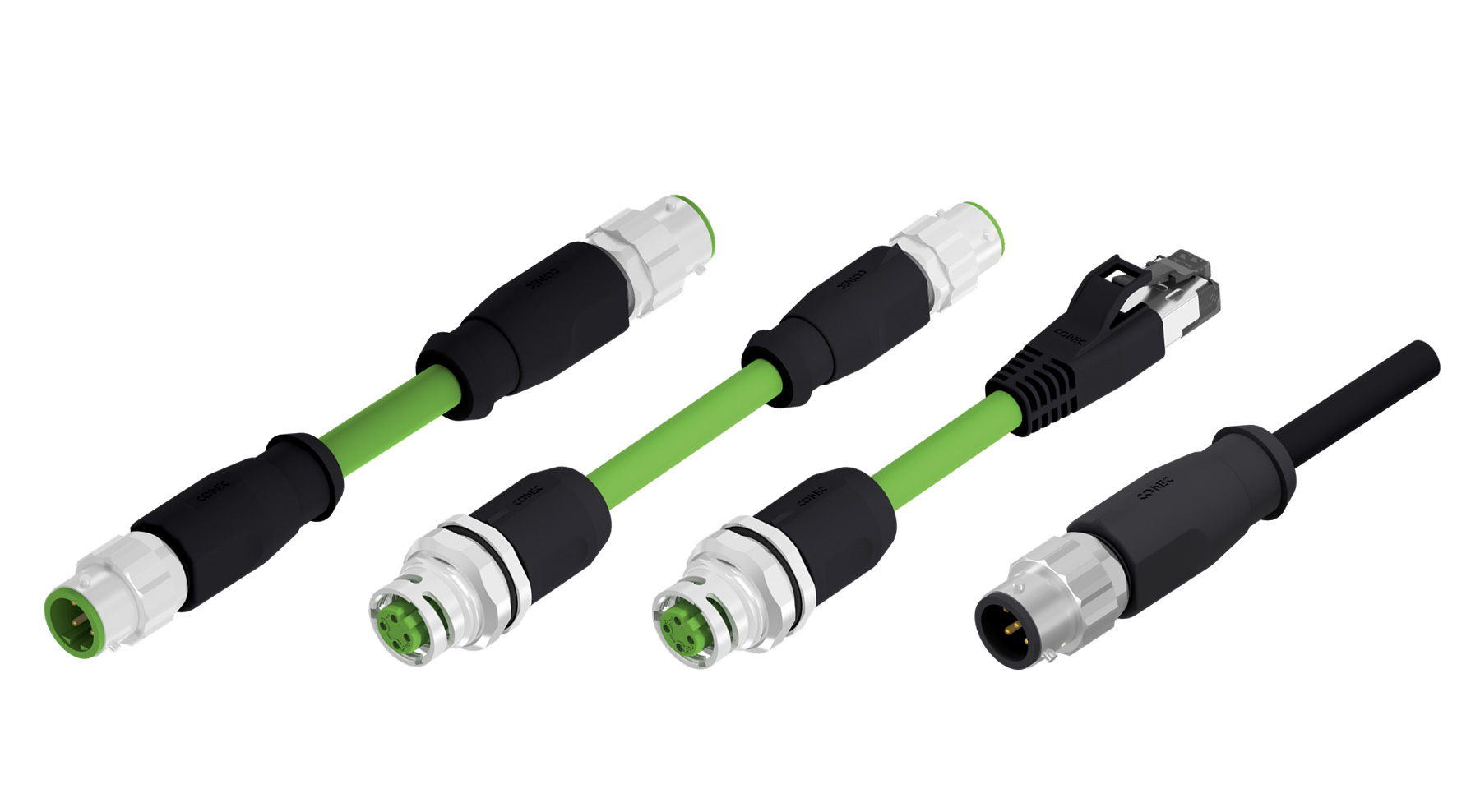

Overmolded connectors are offered as connecting or linking cables
offered in the codings A- and D as a connector version.

CONEC_ID64588_R1_43K1A5072-scr

Connecting cable, Socket female overmoulded – M12 connector male overmoulded

A-Side: Industrial Ethernet socket with cable, female connector axial, D-coded, B-side: M12 connector

You need the B side with a standard M12 crew connector?

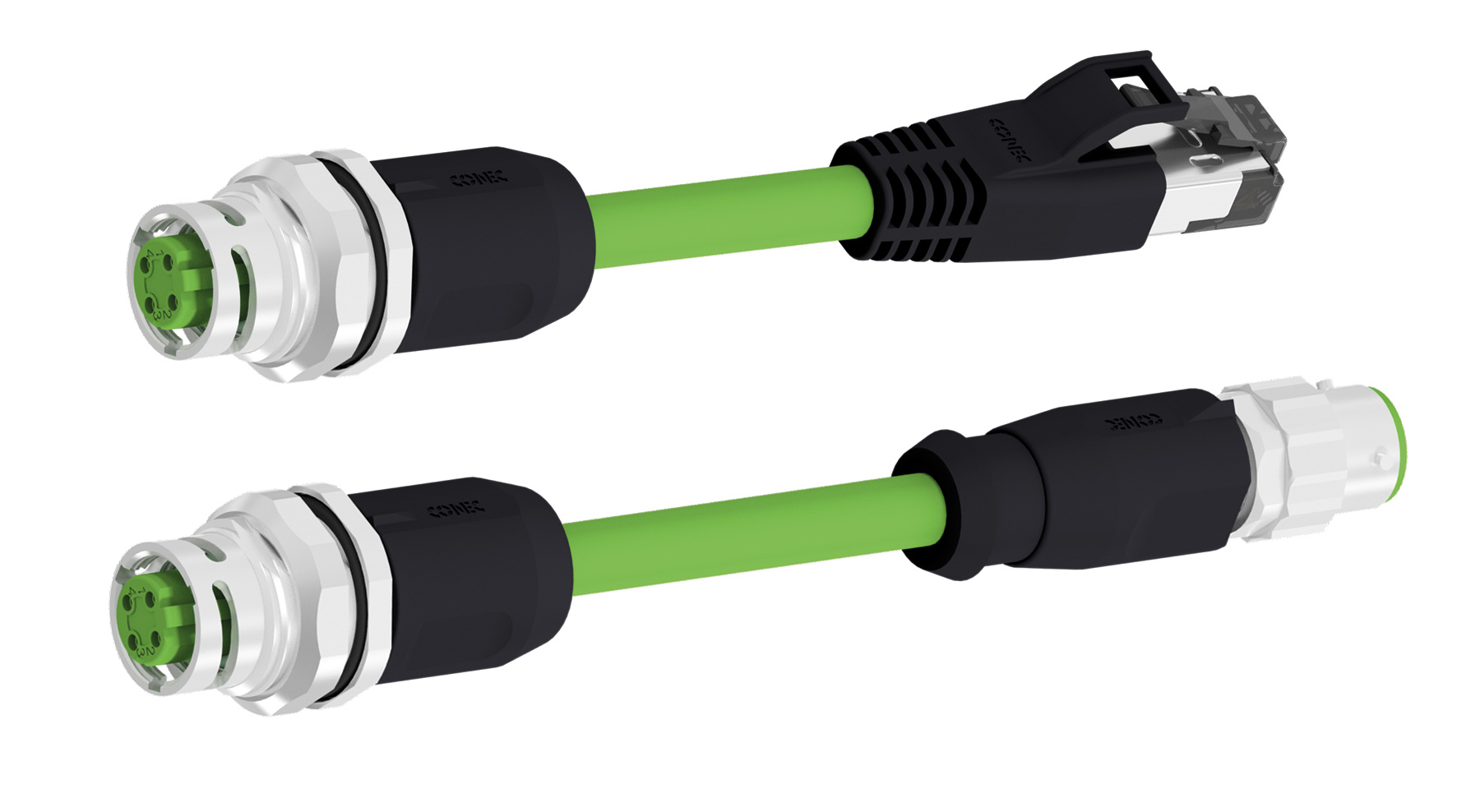

Connecting cable, Socket female overmoulded – RJ45 overmoulded

A Side: Industrial Ethernet socket with cable, female connector axial, D-coded, B-side RJ45

You need the B side with a custom specific connector?

CONEC_ID64587_R1_43K1A5063-scr

For the connection side, variants with open cable for individual connection requirements are also available
in standard lengths of 2-, 3- 5 and 10 m, or connecting cables in standard lengths of 0.3, 0.5 and 1.5 m.

CONEC_ID61195_43K1A4657-1

Connecting cable, connector male overmoulded – connector male overmoulded

Industrial Ethernet connecting cable, A- and B-side male connector, axial, D-coded

You need a customer specific cable length?

Connector overmoulded

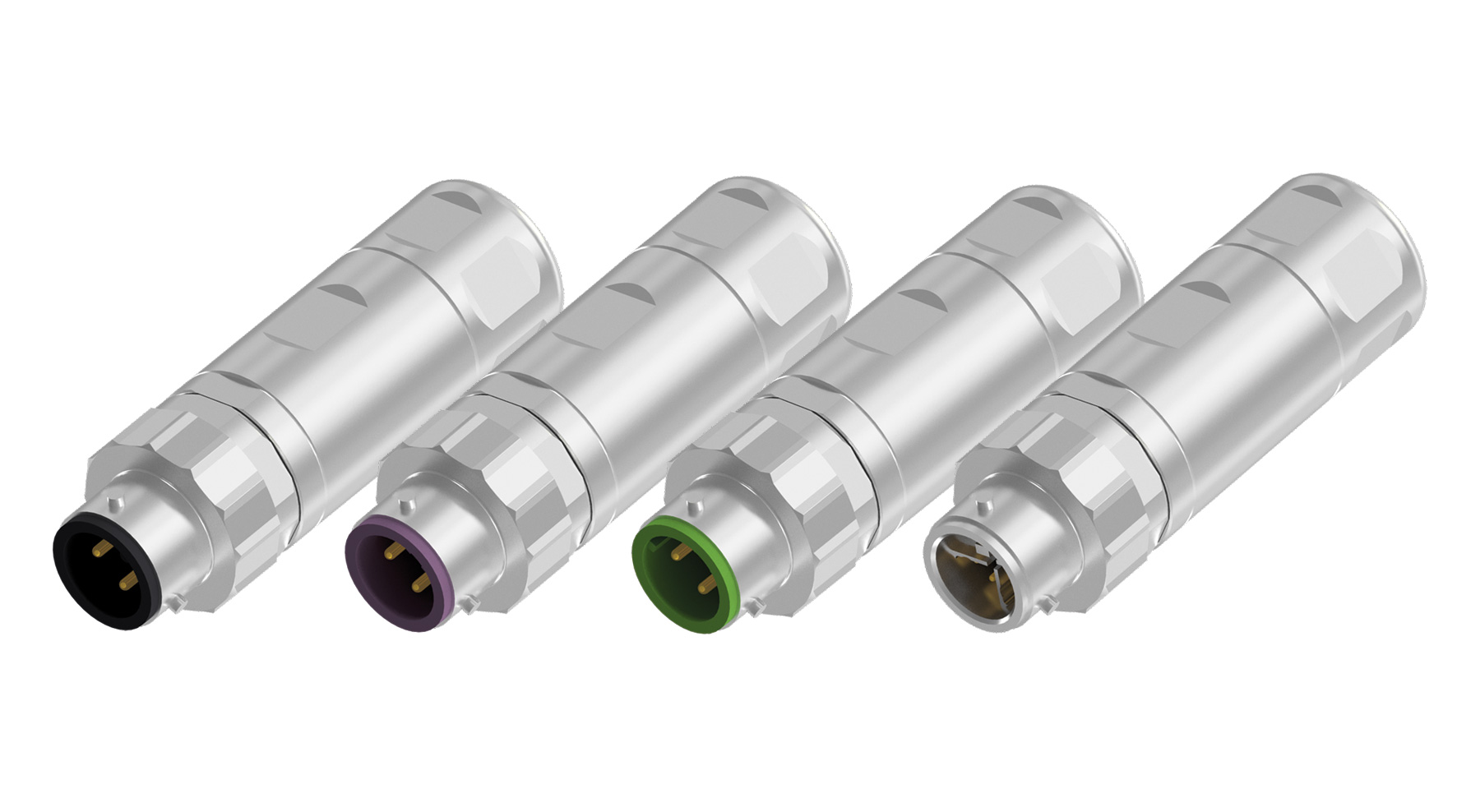

Open end cable, male connector axial, A-coded

For your application you need an field attachable connector version?

43K1A4658_M12Bajonett_A-cod_NEU

Revolutionary simple - safe without compromise

The connectors are designed in accordance with the draft standard IEC CD 61076-2-011/Ed1 and
meet the required standards:

  • Type testing connectors IEC61076-2-101
  • IP testing( IP65/IP67/IP69K) IEC60529 & ISO 20653
  • Shock /Vibration IEC 61076-1:2006
  • Railroad technology: IEC 61073:2010-10
